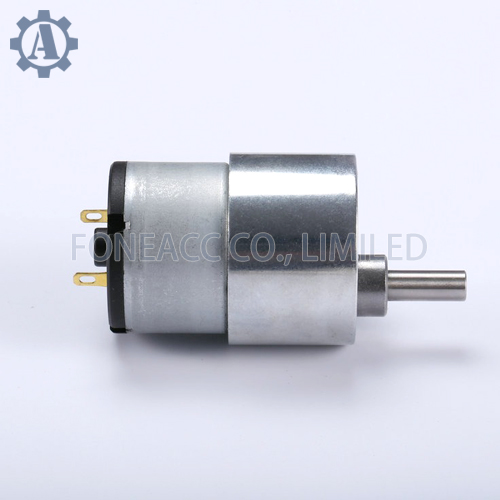

Φ 37 mm compact spur gear motor

FAGS37-520 37 mm small spur gearhead dc electric motor

Item No.: FAGS37-520
- Rated Voltage: DC 1.5V,3V,6V,9V,12V,24V
- Rated Torque: Max. 13Kgf-cm
- Size : Φ37* L TBD
- Shaft : Φ6mm D-cut 0.5mm, custom
- Encoder: Magnetica encoder avaialble
- MOQ: 500 pcs
  • motor case diameter: 35.8 mm
  • motor case shape: l
  • brush type: carbon brush/metal brush
  • motor type: miniature gearbox permanent magnet dc electric motor
  • gearbox type: metal spur gear reducer
  • driveshaft shape: D, O, knurling, screw thread, Customization
  • bearing type: bushing/ball bearing
  • manufacturer: FONEACC MOTOR
  • Description

    The datasheet of GS37-520 is as below:

    gs37-520 37 mm small spur gearhead dc electric motor.webp

    Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.



    Tables for clear view:

    data table of GS37-520 spur gearhead dc electric motor
    Voltage number of stages 2 3 4 5 6
    Gear Ratio 10 16.7 23.3 30 36 50 60 70 90 110 121 150 180 210 270 350 405 450 490 540 630 810
    6V kgf.cm
    Rated Torque
    0.25 0.38 0.53 0.68 0.81 1.03 1.23 1.44 1.85 2.06 2.27 2.81 3.37 3.93 5.05 5.96 6.90 7.67 8.35 9.20 10.73 13.80
    RPM
    Rated Speed
    480 287 206 160 133 96 80 69 53 44 40 32 27 23 18 14 12 11 10 9 8 6
    kgf.cm
    Max Allowable
    Moment Torque
    30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
    RPM
    No Load Speed
    580 347 249 193 161 116 97 83 64 53 48 39 32 28 21 17 14 13 12 11 9 7
    12V kgf.cm
    Rated Torque
    0.25 0.38 0.53 0.68 0.81 1.03 1.23 1.44 1.85 2.06 2.27 2.81 3.37 3.93 5.05 5.96 6.90 7.67 8.35 9.20 10.73 13.80
    RPM
    Rated Speed
    500 299 215 167 139 100 83 71 56 45 41 33 28 24 19 14 12 11 10 9 8 6
    kgf.cm
    Max Allowable
    Moment Torque
    30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
    RPM
    No Load Speed
    600.0 359.3 257.5 200.0 166.7 120.0 100.0 85.7 66.7 54.5 49.6 40.0 33.3 28.6 22.2 17.1 14.8 13.3 12.2 11.1 9.5 7.4

    single motor RF-520 dc electric motor specs
    Model Rated Voltage No Load RATED LOAD Stall
    Speed Current Speed Current Torque Output Efficiency Torque Current
    VDC RPM A RPM A gf.cm W % gf.cm A
    RF-520-22198 6 5800 0.07 4800 0.45 30 1.478 54.8 180 2.3
    RF-520-17370 12 6000 0.06 5000 0.25 30 1.540 51.3 215 1.2


    The whole small spur gear dc electric motor family is as below:

    OD Φ10 mm small spur gear dc electric motor:
    GM10-M10 small spur geared dc electric motor.webp GM10-M20 small dc electric motor gear reducer mounted.webp
    OD Φ12 mm small spur gear dc electric motor:
    GM12-N20 small spur geared dc electric motor.webp GM12-N20-EN small spur geared dc electric motor.webp GM12-N30 small spur geared dc electric motor.webp
    OD Φ13 mm small spur gear dc electric motor:
    GM13-030 small spur geared dc electric motor.jpg GM13-050 small spur geared dc electric motor.webp
    OD Φ16 mm small spur gear dc electric motor:
    GM16-030 small spur geared dc electric motor.webp GM16-050 small spur geared dc electric motor.webp
    OD Φ20 mm small spur gear dc electric motor:
    GM20-130 small spur geared dc electric motor.webp GM20-180 small spur geared dc electric motor.webp
    OD Φ24 mm small spur gear dc electric motor:
    GMR24-N20 small spur geared dc electric motor.webp
    OD Φ25 mm small spur gear dc electric motor:
    GM25-370 small spur geared dc electric motor.webp GM25-2430 small spur geared dc electric motor.webp
    OD Φ37 mm small spur gear dc electric motor:
    GS37-520 small spur geared dc electric motor.webp GS37-528 small spur geared dc electric motor.webp GS37-555 small spur geared dc electric motor.webp



    Small spur gear dc motor applications

    Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures



    Why choose us:

    ***  Experienced manufacturer  ***
    We have more than 15 years of experience in producing and exporting dc gear motor industry all over the world.

    ***  Motor custom  ***
    We accept OEM or ODM orders.

    ***  Samples processing  ***
    We have a sample workshop specialized in processing samples.
    The lead time of samples is usually about 7days, some hot-selling models are about 15 days.

    ***  Capability  ***
    Our monthly capacity is more than 200000pcs.
    We have many R&D engineers for professional advice and solutions.

    ***  Fast delivery  ***
    According to different quantities and DC motor/gear motor models, 15 to 40 days fast delivery time,
    even during the COVID19 pandemic, we have a 99% on-time delivery rate.

    ***  Worry-free quality  ***
    Our products are widely satisfied among customers all over the world with reasonable price and good quality.
    Our warranty period is one year. And our comprehensive non-performing rate is less than 1‰. For these defective dc motors, we will provide replenishment in the next batch of orders.



    Frequently asked questions and answers:

    Q: 1. What dc motor/gear motor do you provide?
    A: Full range of small gearbox dc motor, including spur gearhead dc motor, worm gearbox electric motor, and planetary gear reducer electric motor; diameters from 6 mm, 8 mm, 10 mm, 12 mm, 13 mm, 16 mm, 20 mm, 22 mm, 24 mm, 28 mm, 32 mm, 36 mm, 37 mm, 42 mm, 45 mm, 57 mm (from 0.24 inch to 2.244 inches); output speed 5 rpm to 3000 rpm; gear reduction ratio 5-1500, output torque from 1gf.cm to 500kgf.cm ( from  0.098 mN.m to 49 N.m; from 0.014 oz.in to 7000 oz.in). Long lifespan and reliable smooth running.

    Q: 2. Is it possible for you to develop new motors if we can provide tooling costs?
    A: Yes. Please kindly share the detailed requirements such as performance, size, annual quantity, target price, etc. Then we'll make our evaluation and provide you with the proposal.

    Q: 3. Can I get some samples?
    A: Most of our samples are free for you, some expensive motors we charge double the price as the bulk order price.
    We only deal with bulk orders, many consumer customers only want 1 or 2 for replacement, so we set this rule to select target customers. :)
    Don't worry, the samples charge will be refunded as payment of motors later when you place a mass production order.

    Q: 4. When you will reply to me?
    A: Our customer service staff will reply to you within 12 hours.

    Q: 5. Can you send me a price list?
    A: For all of our small dc motors and mini gear motors, they are customized based on different requirements like lifetime, noise, voltage, shaft, etc. The price also varies according to different quantities. So it's difficult for us to provide a price list. If you can share your detailed requirements and quantity, then we can send you the specified dc electric motor pricing.

    Q: 6. How to order?
    A: Send us an inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/Delivery → Further cooperation.

    Q:7. What's the lead time for regular orders?
    A: For regular dc motor and gear motor orders, the standard lead time is about 25-40 days and the lead time varies based on a different model, period, and quantity.

    Q: 8. What are the payment terms?
    A: We accept payment by T/T, PayPal.  Initial payment 30-50% in advance, shipping against balance payment. We can also accept other payment terms after we have established a good long-term cooperative relationship.

    Q: 9. Which shipping way is available?
    A: DHL, UPS, FedEx, TNT, EMS, China Post, Sea shipping are available, we have favorable prices for those shipping methods since we ship a lot. Contact us for details when you want to compare the shipping cost paid by your side and by our side.

    Q: 10. My package has missing products. What can I do?
    A: Please contact our support team and we will confirm your order with the package contents and check what should do. We apologize for any inconvenience.
