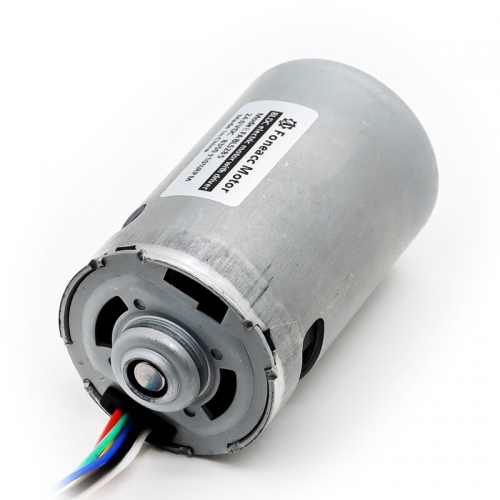

Φ 52 mm inrunner bldc motor with driver
BL5285I, BL5285, B5285M, 52 mm small inner rotor brushless dc electric motor
Item No.: BL5285I, BL5285, B5285M
| - Shell Stator Size : Φ52* L 85 mm;
| - Rated Output Power: 15W - 160W;
| - Rated Voltage: DC 6V - 24V;
| - Rated Torque: up to 1.80 Kgf-cm;
| - Shaft : Φ8.0mm, length custom;
| - Driver: built-in driver with 3 hall sensors
| - MOQ: 500 pcs.
| - Rated Output Power: 15W - 160W;
| - Rated Voltage: DC 6V - 24V;
| - Rated Torque: up to 1.80 Kgf-cm;
| - Shaft : Φ8.0mm, length custom;
| - Driver: built-in driver with 3 hall sensors
| - MOQ: 500 pcs.
Description
BL5285i Φ 52 mm Small Inner Rotor Brushless DC electric motor
| BL5285i | Output Power: 20W~150W | Weight: 650g (Approx.) |
Key features: Built-in driver(built-in driver controller with hall sensor), PWM pulse wide speed range, Clockwise/counter-clockwise rotation, FG speed feedback signal, Low EMC, Low noise, Long life: 2000~20000hrs, Over-current protection, Over-voltage protection, Under-voltage protection.
The datasheet of BL5285i is as below:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power, and shaft extension feature & dimension can be changed to meet the customer-specific requirements.
A clear view of the small bldc motor data table:
| Model |
BL5285-S01 |
BL5285-S02 |
|
|
Voltage (V) |
Operatin Range |
8~26 | 8~26 |
| Rated | 18 | 24 | |
|
No Load |
Speed (rpm) |
4920 | 7930 |
|
Current (A) |
0.54 | 0.71 | |
|
Rated Load |
Torque (mNm) |
83.2 | 117.13 |
|
Torque (g.cm) |
849.1 | 1195.0 | |
|
Speed (rpm) |
3976 | 6771 | |
|
Current (A) |
3.16 | 4.14 | |
|
Output P. (W) |
34.7 | 83.1 | |
| Stall |
Torque (mNm) |
447.6 | 801.69 |
|
Torque (g.cm) |
4568.1 |
8180.4 | |
|
Current (A) |
11.73 | 24.19 | |
